6-Leaf Reverse Eye Spring for Fiat 500 and Fiat 126

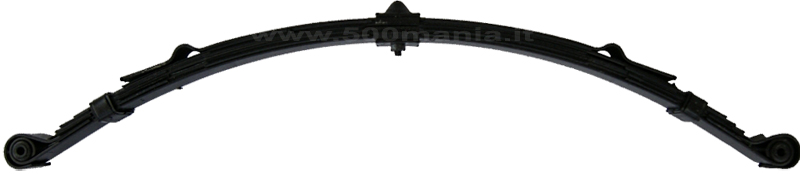

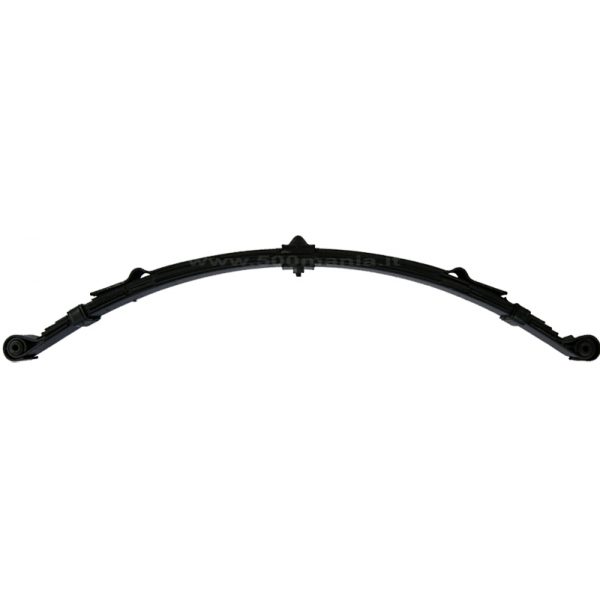

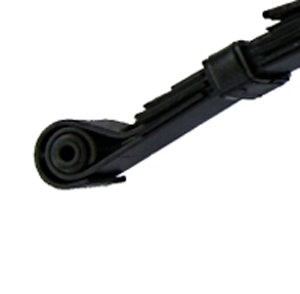

Sporty Setup and Precision: the 6-Leaf Fiat 500 Reverse Eye Leaf Spring

The balestra occhio rovesciato Fiat 500 in this 6-leaf version is the ideal technical solution for those seeking a lowered stance without sacrificing structural stability. Thanks to the 6-blade steel configuration, this leaf spring offers a firmer response than the standard version, making it perfect for those looking for superior performance. The specific reverse eye design allows for a front lowering of approximately 2/2.5 cm once the necessary settling period is complete. It is a component designed to integrate perfectly with Fiat 500 D, F, L, R, and Fiat 126 models, enhancing both the vehicle's aesthetics and driving dynamics.

Optimization for 13" Wheels and Clearance Management

This specific balestra occhio rovesciato Fiat 500 is highly recommended for those using 13-inch wheels. Thanks to the calibrated lowering (less aggressive than the 5-leaf version), it prevents the tire from touching the inside of the fenders during stress or steering. This balance between sporty aesthetics and technical clearance ensures safe car use even with larger diameter wheels. As with any new leaf spring, a break-in period is essential: initially, the car will appear higher, but with regular road work, the steel will reach its final operating height.

Advice for Professional Installation

To preserve the elastic characteristics of your balestra occhio rovesciato Fiat 500, it is essential to follow a natural installation method. We strongly advise against forcing the front lowering through artificial overloading or pressing during assembly, as these practices could weaken the steel or cause structural stress to the mounts. The suspension must be allowed to settle independently through daily use, allowing the 6 leaves to find their optimal position. This way, you will achieve a durable, safe, and perfectly proportioned sport setup, ideal for enhancing the character of your Fiat or 126.

Detailed Technical Specifications:

• Compatibility: Fiat 500 D, F, L, R, and Fiat 126.

• Model: 6-leaf with reverse eyes.

• Effect: Front lowering of approximately 2/2.5 cm (post-settling).

• Technical Advice: Ideal for vehicles with 13-inch wheels.

• Material: High-resistance spring steel.

• Note: Requires a natural break-in period for final stability.
